Question
How can the font size of properties displayed on the Flownex drawing page be changed? Is it possible to modify both the default font size for new Text Boxes and IO Boxes as well as the font size of existing items already placed on the drawing page?
Answer
Yes, Flownex allows users to modify both the default font size for new objects and the font size of existing objects on the drawing page.

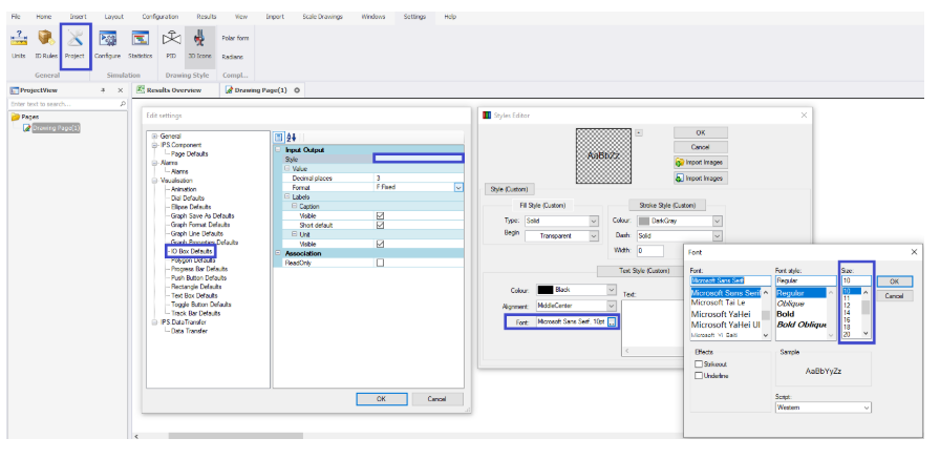

To change the default font size for new Text Boxes or IO Boxes, open the Project Settings by clicking the Project button on the Settings ribbon. Select either the IO Box Defaults or Text Box Defaults settings and open the Styles Editor. The desired font size can then be specified and will be used for newly created objects of that type.

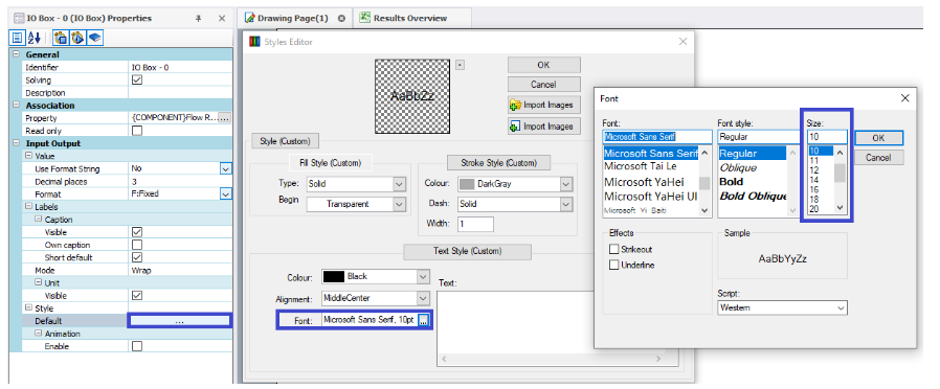

To change the font size of an existing property displayed on the drawing page, select the specific IO Box or text object and open the Styles Editor. The font size can then be adjusted for that individual item without affecting the default settings for future objects.
