When plotting mass fractions versus time in a Flownex line graph, is there a unit available that allows the y-axis to display values as percentages instead of fractions? Additionally, is it possible to plot result variables on Flow Path Graphs that are not included in the default drop-down list, such as mass fractions?

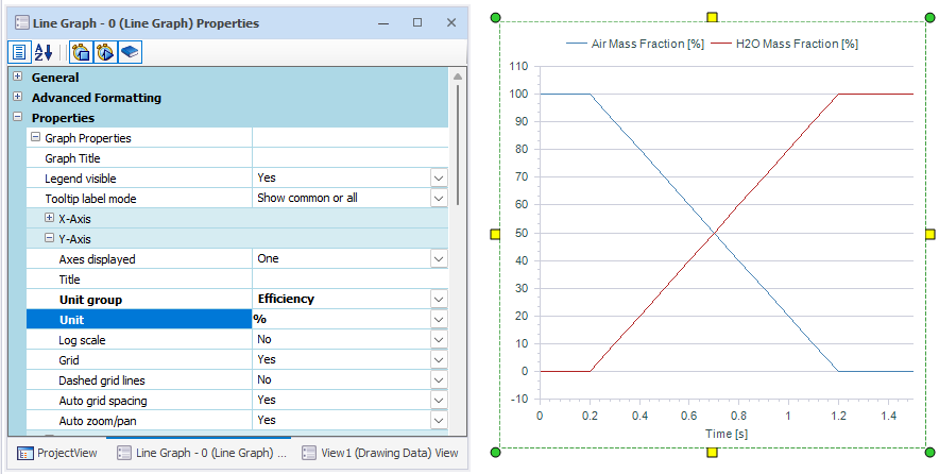

Yes, percentages can be displayed on a Flownex line graph. When configuring the graph, set the Unit Group to Efficiency and then select % as the Unit. This will display the y-axis values as percentages rather than decimal fractions.
Unfortunately, it is not currently possible to plot additional result properties on Flow Path Graphs beyond those already available in the drop-down list. At present, properties such as node mass fractions cannot be added as custom variables to a Flow Path Graph if they are not included in the available options.
The possibility of adding node mass fraction results as a Flow Path Graph option has been identified as a potential enhancement and has been discussed with the development team for future consideration.
