CHALLENGE

The objective of the simulation is to show the use of two PID controllers in Simulink in the start-up and operation of a two shaft Brayton cycle.  One of the PID controllers is used to control the generator power during the start-up. The second PID controller is used to control the reactor outlet temperature by adjusting the control rod depths when the start-up is complete.

BENEFITS

This case study demonstrates how Flownex and Simulink are integrated to perform different parts of a simulation.

Integration of Flownex with Simulink is a powerful tool that is regularly used for the design of advanced control systems. It is also frequently used to simulate electrical systems that interact with thermal flow systems.

SOLUTION

Flownex provides easy integration with Simulink. The combination provides an easy to use and powerful tool for advanced applications of Flownex in control system design and simulation of integrated systems.

INTRODUCTION

This case study demonstrates how Flownex and Simulink are integrated to perform different parts of a simulation.

Integration of Flownex with Simulink is a powerful tool that is regularly used for the design of advanced control systems. It is also frequently used to simulate electrical systems that interact with thermal flow systems.

SYSTEM DESCRIPTION

The system that is used for this demonstration is the same system that is described in the case study “Start-up of Two-shaft High-Temperature Gas-Cooled Reactor Nuclear Power Plant”. For a detailed system description, please refer to that case study.

OBJECTIVE OF SIMULATION

The objective of the simulation is to show the use of two PID controllers in Simulink in the start-up and operation of a two shaft Brayton cycle.  One of the PID controllers is used to control the generator power during the start-up. The second PID controller is used to control the reactor outlet temperature by adjusting the control rod depths when the start-up is complete.

FLOWNEX MODEL SETUP

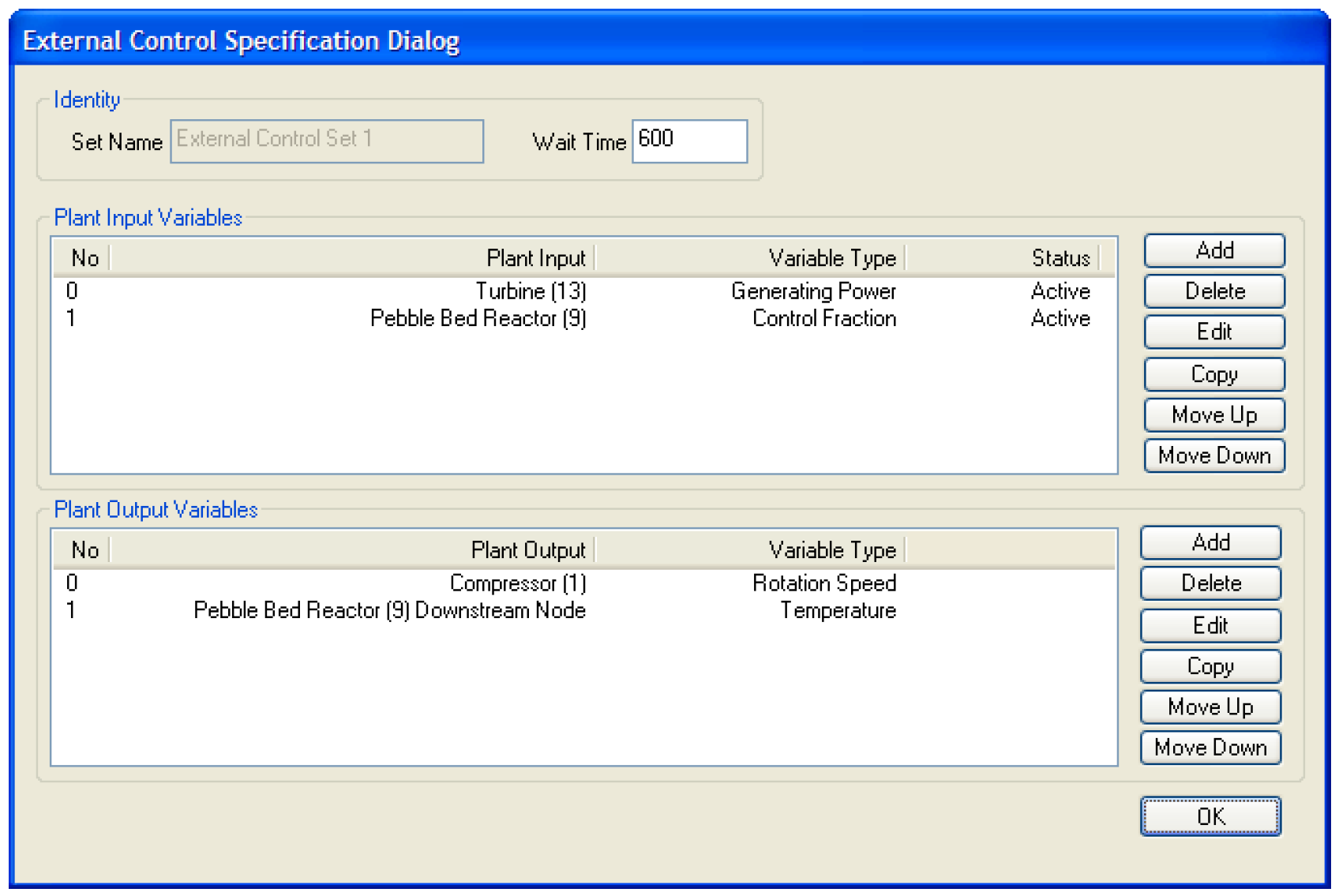

The data that will be exchanged with Simulink is defined in the External Control Set Editor.

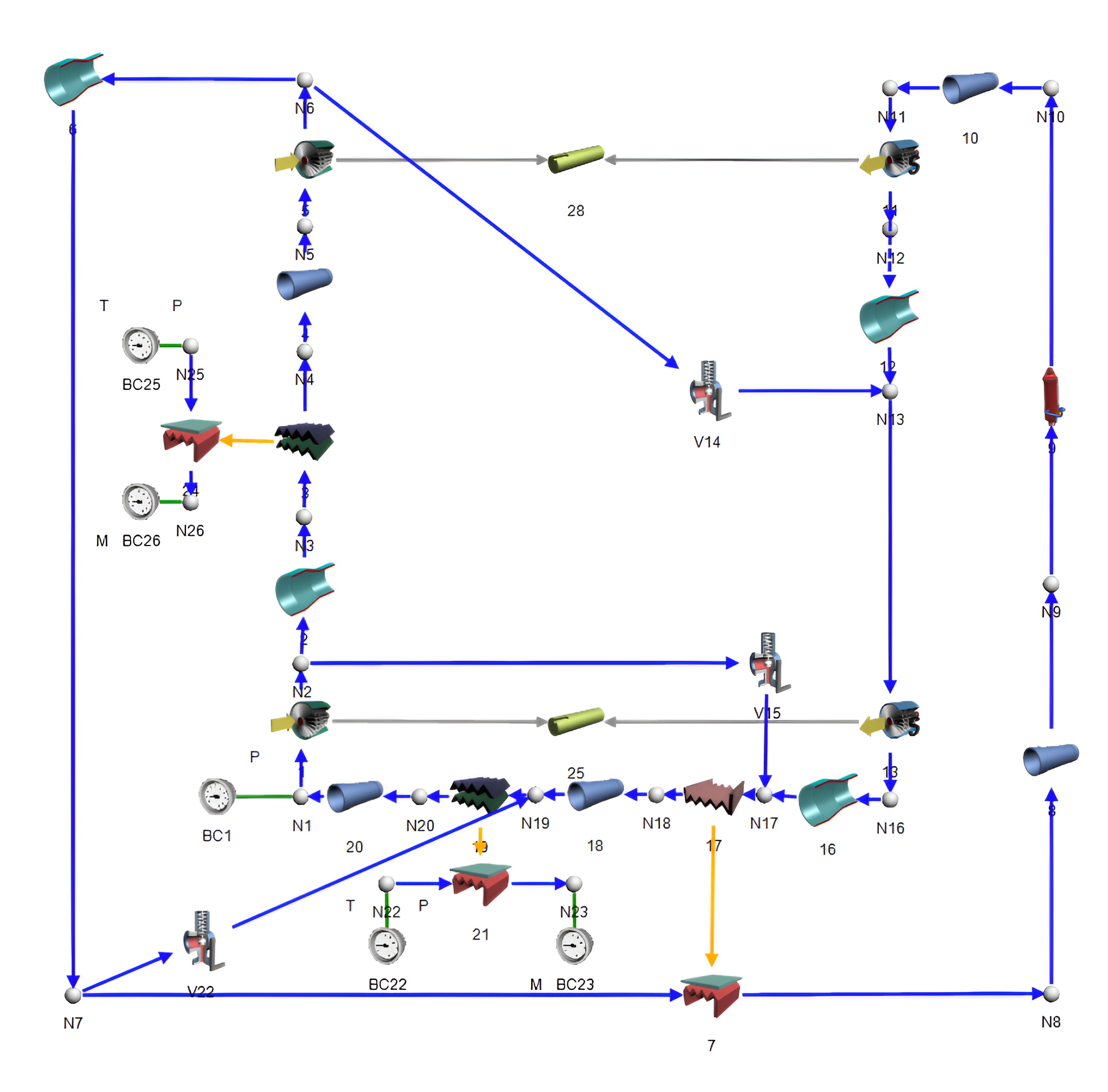

The Flownex model of the system is shown in Figure 2.

SIMULINK MODEL SETUP

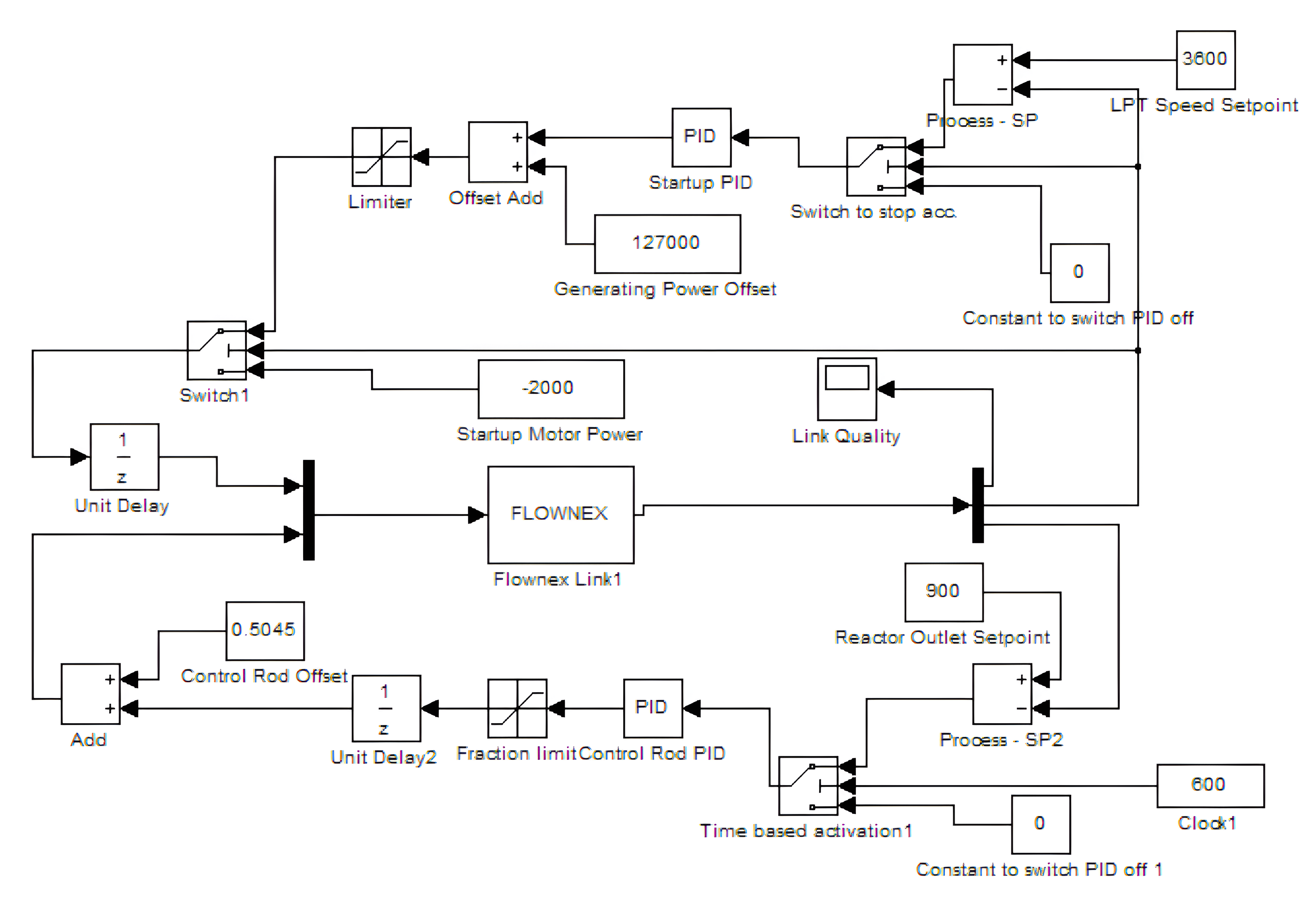

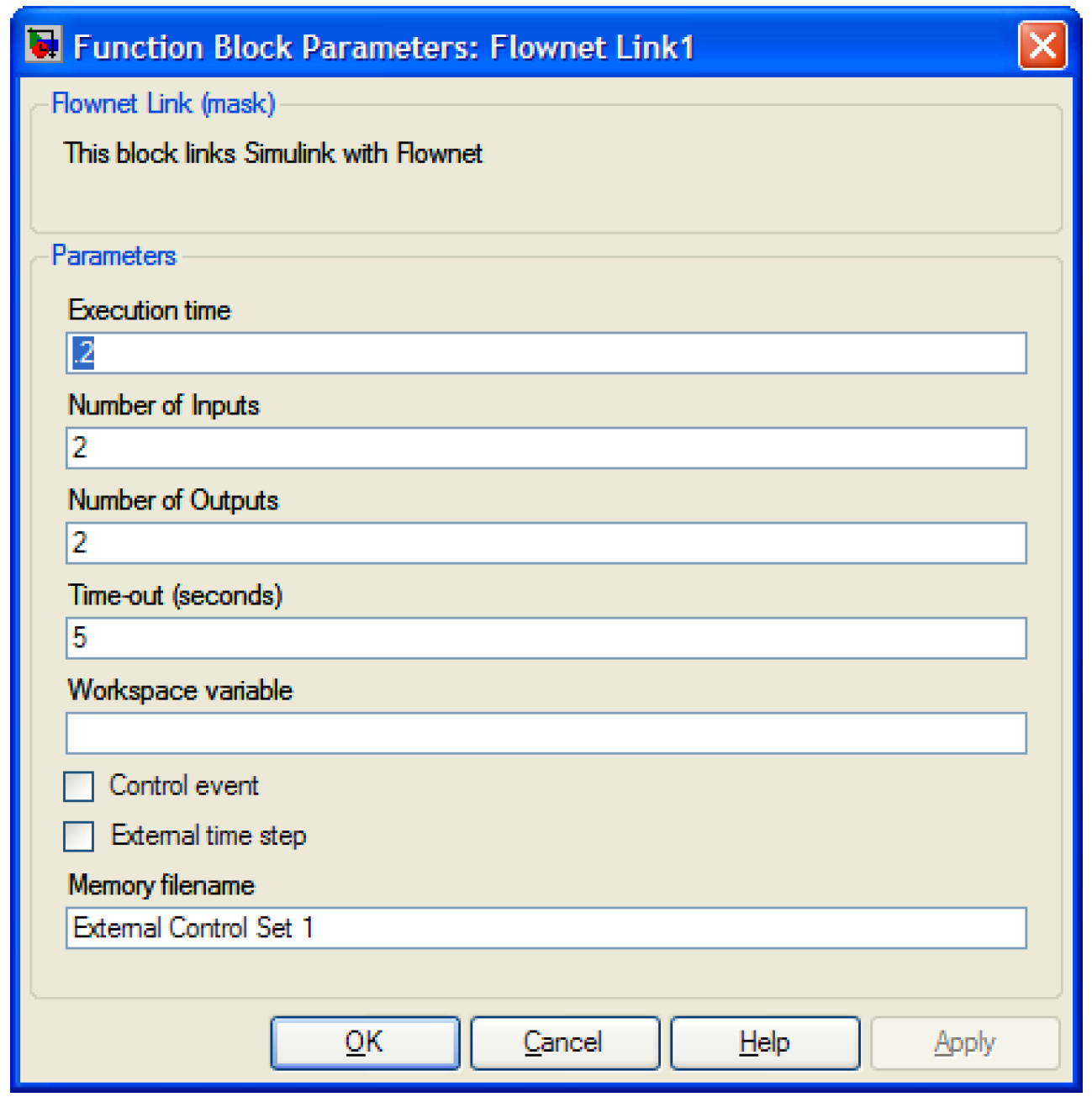

The next two figures show how the inputs and outputs are defined and the model is set up in Simulink.

DESCRIPTION OF SIMULATION

The speed of compressor 1 (low pressure compressor) is sensed and the generating power of turbine 13 (power turbine) is controlled by one PID controller in Simulink. At first when the compressor shaft speed is low the generator power is set to -2 MW and the generator acts as a motor. The PID controller is switched on and the generator then switches over to generating mode when the compressor shaft speed approaches its design point. The PID controller in Simulink that controls the reactor outlet temperature is only activated after the start-up is complete. This controller controls the reactor control rod depth to maintain a constant reactor outlet temperature of 900°C. The temperature of Node 10 at the reactor outlet is sensed and the control rod depth of the reactor, element 9 is controlled.

RESULTS

The first results graph show how the power is kept at -2 MW during the first phase of start-up for the generator to act as a motor. When the turbo machine speed is close enough to the design point, the PID controller takes over and starts to increase the generator power until it is at full load.

The next figure shows how the low pressure compressor speed is controlled to be at the design point of 3600 rpm.

After 200 seconds in the simulation, the PID controller that controls the control rod depth is turned on. The next figure shows the controller action.

The last figure shows the reactor outlet temperature being controlled to 900°C.

CONCLUSION

Flownex provides easy integration with Simulink. The combination provides an easy to use and powerful tool for advanced applications of Flownex in control system design and simulation of integrated systems.
